Fraunhofer research roots
Apply research depth to product questions, from technical feasibility and measurement context to practical system requirements.
Practical engineering for semiconductor and domain-AI workflows
Forge42 turns advanced research into focused products for semiconductor teams and knowledge-intensive operations—combining wafer handling and metrology engineering with domain AI software.
Technology portfolio
Choose the product path that fits your workflow
WaferAdapter
Mixed-wafer processing without tool replacement
Run smaller and non-standard substrates through 300mm-class handling and process flows using adapter solutions matched to the tool and environment.
Explore WaferAdapter →Adaptive Tool Platform
Configurable wafer handling and inline metrology
Bring adapter loading, alignment, robot flow, and planned measurement positions into one configurable platform concept.
Explore Adaptive Tool Platform →RavenMind
Domain intelligence for operational work

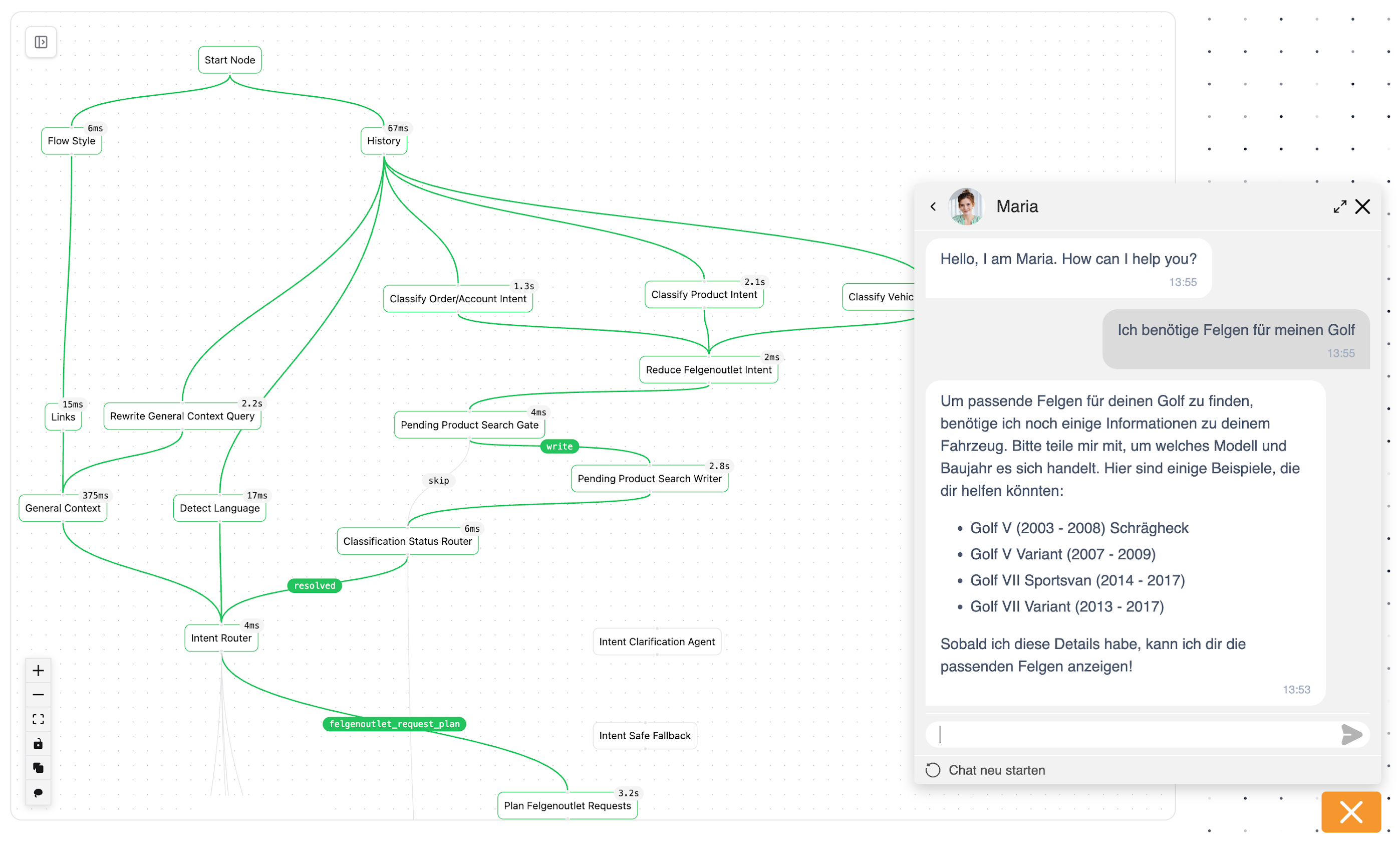

Turn company knowledge, live data, and business rules into AI-assisted workflows for complex, repetitive investigations.
Visit RavenMind →Company credibility
Research depth. Product discipline.
Forge42 combines Fraunhofer research roots with product engineering from Dresden, Germany—building focused systems where semiconductor hardware and domain software need to work together.
Hardware + software engineering
Work across substrate handling, metrology, automation, and domain software instead of treating each layer in isolation.
Dresden execution base
Develop focused deep-tech products from one of Europe’s established semiconductor regions.
